Fiber Protection: Features and Sheathing Material

Features

  ◇Impact resistant                    ◇Heat resistant
◇Welding sparks                      ◇Repeated bending
◇Lateral pressure                     ◇Prevents loss of optical signal


In combination with a Fiber Protection Connector, a variety of sensors can be completelybending. Due to the different types of interlocking and materials used, the Fiber Protection Tubes can be supplied in variety of models. Please inquire for details.

Applications

◇Electrical wire protection ◇Medical equipment  ◇Shower Hose

◇Commercial game machines  ◇Robotics  ◇Rodent protection

◇Lighting  ◇Outdoor Video observation cameras  ◇Audio equipment
◇Military applications

Fiber Optic Insertion

◇Standard fiber insertion techniques can be used. Through a proprietary process we can also pre-load a roll of tubing with your fiber. Please inquire for details.

Surface treatment

◇Double washing — for high precision applications

◇Chemical Polishing — Extra shiny surface for optical applications

Sheathing with an ECO friendly p

◇As a substitute for Poly Vinyl Chloride(PVC), Olefin Elastomer was developed, which is a highly flexible Low Smoke Zero Halogen (LSZH) product.

Note

ROHS Certification, Cutting tube ends and debarring,Inspection certification upon request

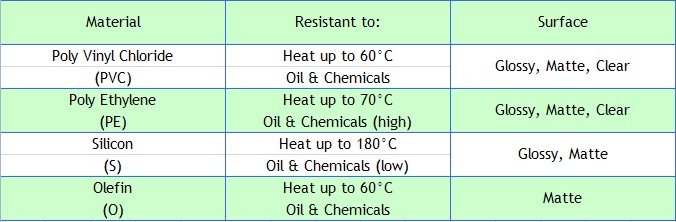

Sheathing characteristic


PVC Colors available

Standard:

●Glossy Black also matte, ●Green, ●Yellow, ●Blue, ●Orange, ○White, ●Grey, ●Pink, ●Red, ●Clear

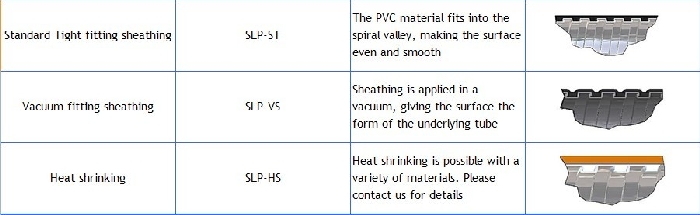

PVC Sheathing variations: Three
