FLEXIBLE SHAFT

Features

◇By using piano wires coiled in an opposite direction this tube makes for a flexible rotating axle,able to transmit torque.

◇A hollow type is also available

◇This type does not uncoil by backlash from the process when stopped

Materials

◇Piano wire, hardened steel wire,stainless steel wire

Applications

◇Surgical drills

◇Equipment that requires flexible rotating connections

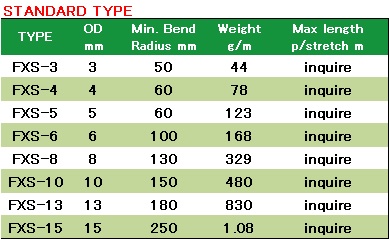

Standard Length and bending radi

◇Standard production length is approx. 5m

◇Approx. Min. bending R≤20 x Outer Diameter


list
