DOUBLE SPRING SQUARE LOCKED

Features

◇By inserting a stainless steel wire in the spiral valley a defined bending limiting radius is achieved

◇Can also be produced in a titanium version(light weight)

◇Withstands twisting and pulling and repeated bending

◇Bending radius can be adjusted by adding stainless steel wire

Materials

◇Tubing: Stainless steel, please inquire for other materials.

◇Sheathing: PVC, Olefin, Silicon,PUR

Applications

◇Optical fiber protection especially for large and hollow fibers

◇In places where less elasticity is required


Standard Length

◇Standard production length is approx. 20m

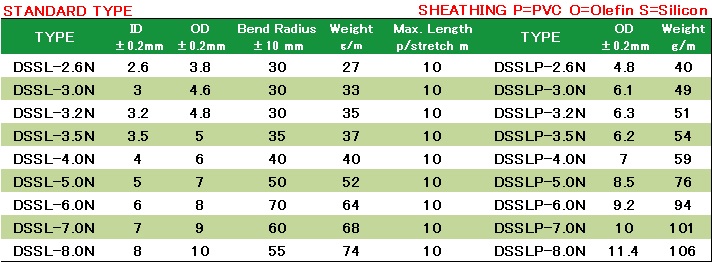

list
