SEMI-INTER LOCKED(DOUBLE)SPRING TUBE

Features

◇By inserting a stainless steel wire into the spiral valley of the semi-inter tube a greater bending radius limitation is achieved.

◇In addition the radius can be adjusted by modifying the wire diameter and number of wires inserted

◇Doubling the stainless steel wire will produce a  stable outer tube diameter with increased stability

◇Almost none elasticity, which is an optimum protection for Optical Fibers,especially, for the quartz-and Hollow Fiber types

Materials

◇Tubing: Stainless steel, please inquire for other materials.

◇Sheathing: PVC, Olefin, Silicon,PUR

Applications

◇Excellent for limited bending radius

◇Dental and High power laser welding machines

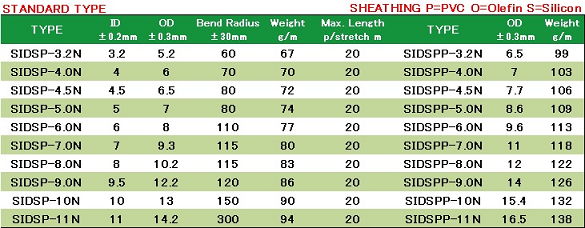

Standard Length

◇Standard production length is approx. 20m


list
